# **About me**
### **Marco Bonezzi** (@marcobonezzi)
### TSE at **MongoDB**, Dublin
### **TSE**: *Helping customers to be successful with MongoDB*
### Experience in distributed systems, high availability and database technologies.
### Fan of all things containerised!
---
class: top, left
# **How many of you have experience with containers?**
### 1. Ever heard of containers and Docker?
--
### 2. Deployed an application in a container using Docker?
--
### 3. Used docker compose or docker swarm?
--
### 4. Know the benefits of using microservices or containers for your organisation?
---
class: top, left

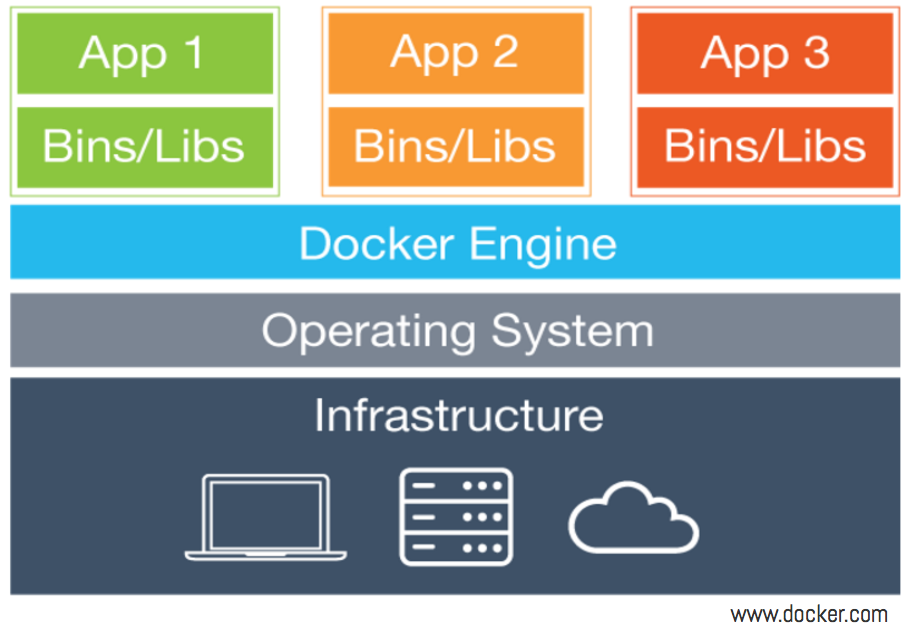

# **What is a container and what do we mean by container?**
### What is a container?
--
### How can containers help?
--
### Why organisations use containers?
---
class: top, left
# **Containers are great!**
| Different architectures in Development and Production | |
|---|---|
| Co-located processes sharing resources | |
| Production != docker run my_new_shiny_cluster | |
---
class: top, left
# **How can containers help?**
### Ease of deployment + portability
- Predefined patterns
- Replicate environments
### Resource Control
- Set resource limits
### Orchestration
- Decide where to deploy one or more containers based on rules / context
### Create once, deploy everywhere
---
class: top, left

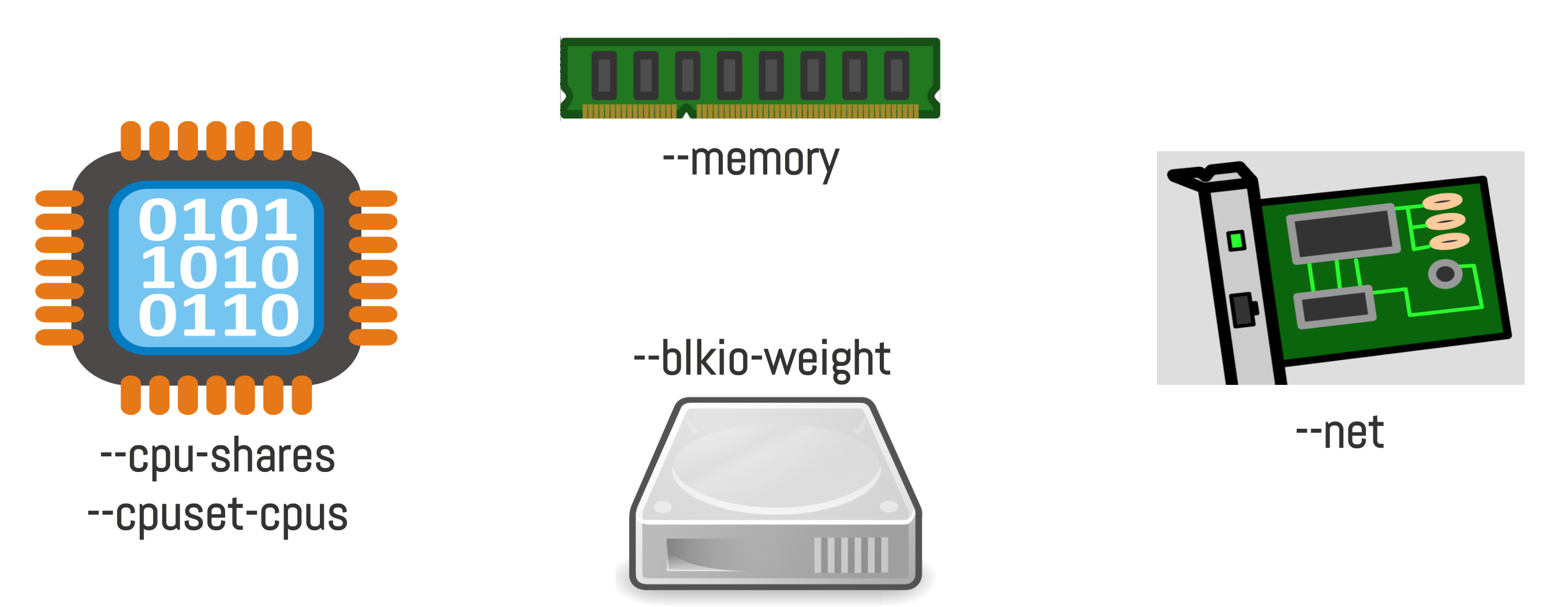

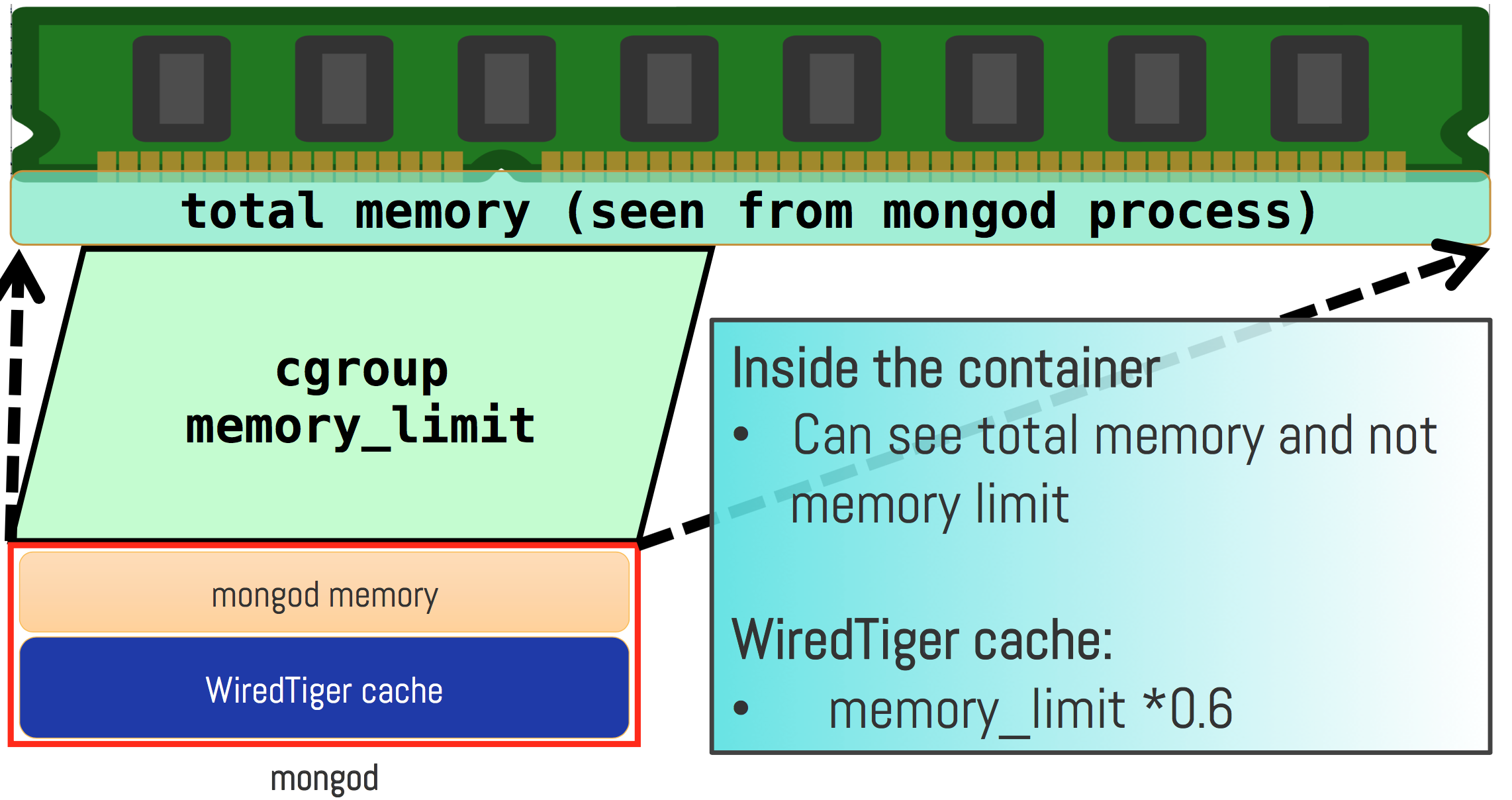

# **Resource separation with cgroups**
### Running multiple containers on the same host?
Defining resource limits for each container can be useful
---
class: top, left

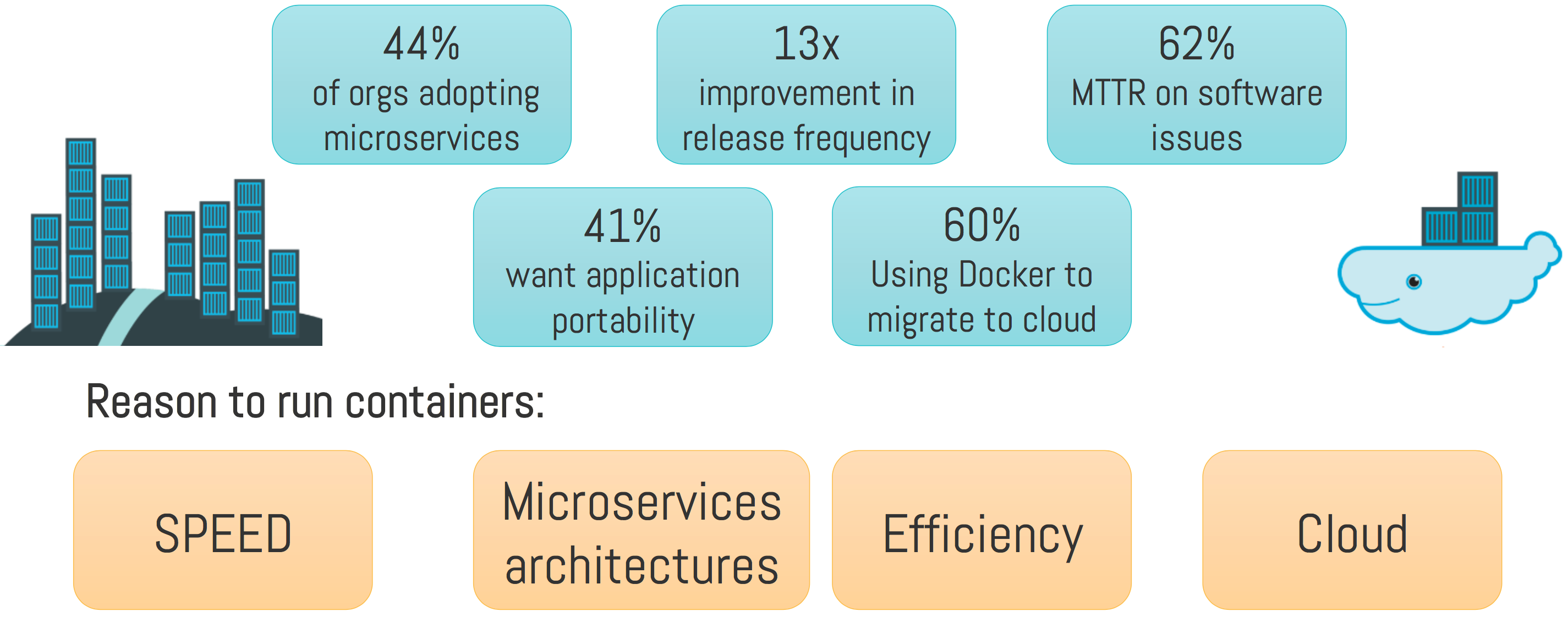

# **Why organisations use containers?**
According to ***"The Docker Survey, 2016"***:
---
class: top, left
# **Docker ecosystem**
### - Provisioning and managing Dockerized hosts
### - Define multi-container applications in a single file
### - Cluster of Docker hosts as a single Docker host
---
class: top, left
# **Building our first application with Docker**
We will start with something simple for our first app:
- Python Flask
- MongoDB
--
We will use:
- 1 Container running python + flask
- 1 Container running MongoDB
--
Steps we will follow for each:
- **Dockerfile** (Define the image)
--
- **docker build** (build the image)
--
- **docker run** (run the image)
---
class: top, left
# **Building the python + Flask container**
Simple Flask python application that will retrieve information from a database.
```shell
├── app.py
│ ├── app.py
│ ├── index.html
│ ├── requirements.txt
│ ├── server.py
│ └── templates
│ └── index.html
├── my_app.dockerfile
├── server.py
2 directories, 7 files
```
---
class: top, left
# **Building the python + Flask container**
- **Dockerfile** (Define the image)
```shell
# Set the base image to Ubuntu
FROM ubuntu
# File Author / Maintainer
MAINTAINER Marco Bonezzi
# Add the application resources URL
#RUN echo "deb http://archive.ubuntu.com/ubuntu/ $(lsb_release -sc) main universe" >> /etc/apt/sources.list
# Update the sources list
RUN apt-get update && apt-get -y install
# Install basic applications
RUN apt-get install -y tar git curl nano wget dialog net-tools build-essential
# Install Python and Basic Python Tools
RUN apt-get install -y python python-dev python-distribute python-pip
# Copy the application folder inside the container
ADD /my_app /my_app
# Get pip to download and install requirements:
RUN pip install -r /my_app/requirements.txt
# Expose ports
EXPOSE 80
# Set the default directory where CMD will execute
WORKDIR /my_app
# Set the default command to execute
CMD python server.py
```
---
class: top, left
# **Building the python + Flask container**
- **docker build** (build the image)
```shell
docker build -t my_app -f my_app.dockerfile .
```
--
- **docker run** (run the image)
```shell
docker run --name my_app -p 8080:80 -i -t my_app
```
---
class: top, left
# **Building the MongoDB container**
- **Dockerfile** (Define the image)
```shell
FROM ubuntu
MAINTAINER Marco Bonezzi "marco.bonezzi@10gen.com"
#CREATE GROUP AND USER FOR MONGODB
# add our user and group first to make sure their IDs get assigned consistently, regardless of whatever dependencies get added
RUN groupadd -r mongodb && useradd -r -g mongodb mongodb
#UPDATE PACKAGES AND INSTALL NUMACTL
RUN apt-get update \
&& apt-get install -y --no-install-recommends \
ca-certificates curl \
numactl \
gosu \
wget \
libcurl3 libpci3 libsensors4 libsnmp30 libwrap0 snmp \
&& rm -rf /var/lib/apt/lists/*
# SETTING MONGODB VERSION TO WORK WITH
ENV MONGO_MAJOR 3.4
ENV MONGO_VERSION 3.4.0-rc3
RUN mkdir /tmp/mongodb
RUN cd /tmp/mongodb
WORKDIR /tmp/mongodb
```
---
class: top, left
# **Building the MongoDB container**
```shell
RUN wget https://repo.mongodb.com/apt/ubuntu/dists/xenial/mongodb-enterprise/testing/multiverse/binary-amd64/mongodb-enterprise-server_3.4.0~rc3_amd64.deb
RUN wget https://repo.mongodb.com/apt/ubuntu/dists/xenial/mongodb-enterprise/testing/multiverse/binary-amd64/mongodb-enterprise-mongos_3.4.0~rc3_amd64.deb
RUN wget https://repo.mongodb.com/apt/ubuntu/dists/xenial/mongodb-enterprise/testing/multiverse/binary-amd64/mongodb-enterprise-tools_3.4.0~rc3_amd64.deb
RUN wget https://repo.mongodb.com/apt/ubuntu/dists/xenial/mongodb-enterprise/testing/multiverse/binary-amd64/mongodb-enterprise-shell_3.4.0~rc3_amd64.deb
# UPDATE REPOS AND INSTALL MONGODB WITH DEFINED VERSION
#RUN set -x \
# && apt-get update
RUN dpkg -i /tmp/mongodb/mongodb-*.deb
RUN mv /etc/mongod.conf /etc/mongod.conf.orig
# DATA DIRECTORY SETUP
RUN mkdir -p /data/db && chown -R mongodb:mongodb /data/db
# SETTING ENTRYPOINT
COPY docker-entrypoint.sh /entrypoint.sh
COPY mongod_wt.conf /etc/mongod.conf
RUN chown -R mongodb:mongodb /etc/mongod.conf
ENTRYPOINT ["/entrypoint.sh"]
# PORT TO BE EXPOSED (inside container, different on host)
EXPOSE 27017
EXPOSE 27019
# COMMAND TO RUN WHEN RUNNING THE CONTAINER
CMD ["-f", "/etc/mongod.conf"]
```
---
class: top, left
# **Building the MongoDB container**
- **docker build** (build the image)
```shell
docker build -f mongodb.3.4.0.docker -t mongodb .
```
--
- **docker run** (run the image)
```shell
docker run -d --hostname mongo1 --name mongo -p 27017:27017 mongodb mongod
```
---
class: top, left
# **Both containers now running...**
- Python + Flask
```shell
docker run --name my_app -p 8080:80 -i -t my_app
[14/Nov/2016:22:54:43] ENGINE Bus STARTING
[14/Nov/2016:22:54:43] ENGINE Started monitor thread 'Autoreloader'.
[14/Nov/2016:22:54:43] ENGINE Started monitor thread '_TimeoutMonitor'.
[14/Nov/2016:22:54:43] ENGINE Serving on http://0.0.0.0
[14/Nov/2016:22:54:43] ENGINE Bus STARTED
```
- MongoDB
```shell
docker run -d --hostname mongo1 --name mongo -p 27017:27017 mongodb mongod
9c0f550b10e30809af5362bf7d4c7d5e91619ac577bf6276147e9c780412122f
```
- Checking our containers running:
```shell
docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
9c0f550b10e3 mongodb "/entrypoint.sh mongo" 36 seconds ago Up 35 seconds 0.0.0.0:27017->27017/tcp, 27019/tcp mongo
29e7c868f6ef my_app "/bin/sh -c 'python s" 3 minutes ago Up 3 minutes 0.0.0.0:8080->80/tcp my_app
```
---
class: top, left
# **How is the application connecting to the DB on a different container?**
```python
app.config['MONGO_HOST'] = '192.168.0.101'
app.config['MONGO_PORT'] = 27017
app.config['MONGO_DBNAME'] = 'flask_demo'
mongo = PyMongo(app, config_prefix='MONGO')
```
```shell
*docker ps --format '{{.Names}}\t\t{{.Command}}\t\t{{.Ports}}'
my_app "/bin/sh -c 'python s" 0.0.0.0:8080->80/tcp
mongo "/entrypoint.sh mongo" 0.0.0.0:27017->27017/tcp, 27019/tcp
```
---
class: top, left
# **Multicontainer applications with Docker compose**
- ### Define and run multi-container Docker applications
- ### One (or multiple) Compose files to configure your application services
- ### Deploy with a single command
- ### Great for ease of deployment in development, testing or staging
---
class: top, left
# **Compose: easy as a three-step process**
### 1. Define your application environment with a Dockerfile (Done)
### 2. Define the services for your app in a docker-compose.yml file
### 3. Run *docker compose up* and it will start running your application based on multiple containers
---
class: top, left
# **2. Define the services for your app in a docker-compose.yaml file**
```yaml
version: '2'
services:
my_app:
image: my_app
ports:
- 8080:80
hostname: my_app
container_name: my_app
labels:
- "service=flask"
mongodb:
image: mongodb
ports:
- 27017:27017
hostname: mongod
container_name: mongod
labels:
- "service=mongodb"
```
---
class: top, left
# **3. Run *docker compose up* and it will start running your application based on multiple containers**
```shell
$ docker-compose up
Creating my_app
Creating mongod
Attaching to mongod, my_app
my_app | [15/Nov/2016:22:38:38] ENGINE Bus STARTING
my_app | [15/Nov/2016:22:38:38] ENGINE Started monitor thread 'Autoreloader'.
my_app | [15/Nov/2016:22:38:38] ENGINE Started monitor thread '_TimeoutMonitor'.
my_app | [15/Nov/2016:22:38:38] ENGINE Serving on http://0.0.0.0
my_app | [15/Nov/2016:22:38:38] ENGINE Bus STARTED
```
### Our app is now ready at *http://localhost:8080/users*
---
class: top, left
# Deploying Docker containers on AWS or other Cloud providers
### *How can we easily provision new hosts to be used with Docker?*
## Docker machine
- Provision new hosts
- Select the instance configuration
- Select the OS and install docker
- Configure our docker client
---
class: top, left
# Configuring a Docker Swarm
---
class: top, left
# Orchestrating containers with Docker Swarm
### Why Docker Swarm?
### Evaluating Container Platforms at Scale
- 1000 EC2 instances in a cluster
- What is their performance at scale?
- Can they operate at scale?
- What does it take to support them at scale?
From: *https://medium.com/on-docker/evaluating-container-platforms-at-scale-5e7b44d93f2c#.hgbdyhfmp*
---
class: top, left

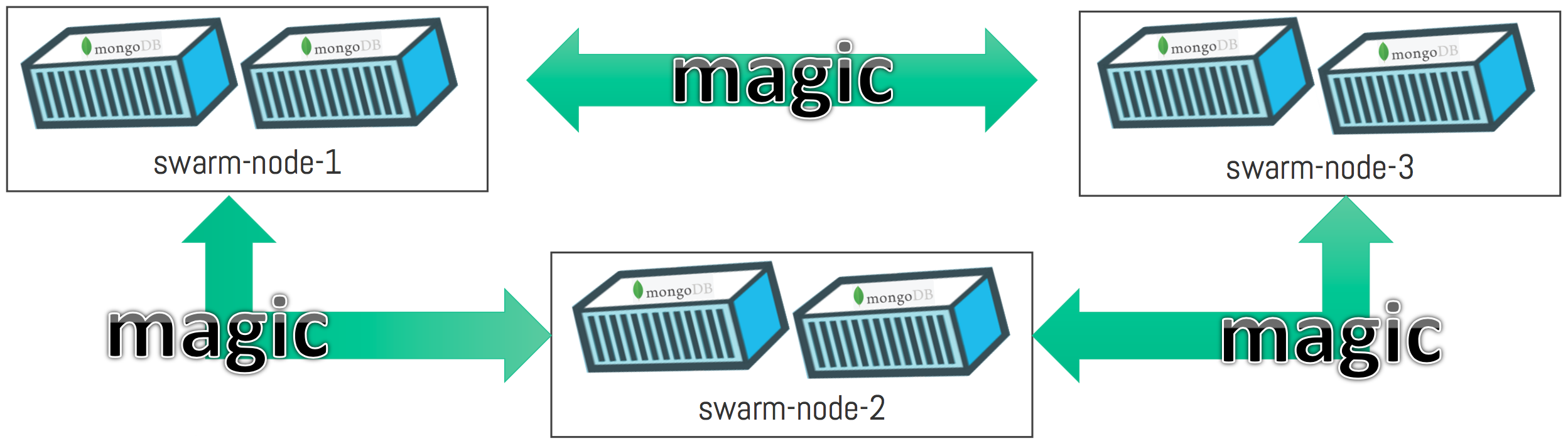

# Multi-host networking with Swarm
### How can each container connect to other containers in different hosts?
- Swarm overlay container-to-container network
- Using the hostname defined in the Compose file
---
class: top, left
# Orchestrate containers deployment
## Filters in Swarm to define deployment rules
- Two categories: *node filters* and *container configuration filters*
- **Node filters**:
- Based on characteristics of the Docker host (or Docker daemon)
- **Container configuration filters**:
- Based on characteristics of containers, or on the availability of images on a host.
---
class: top, left

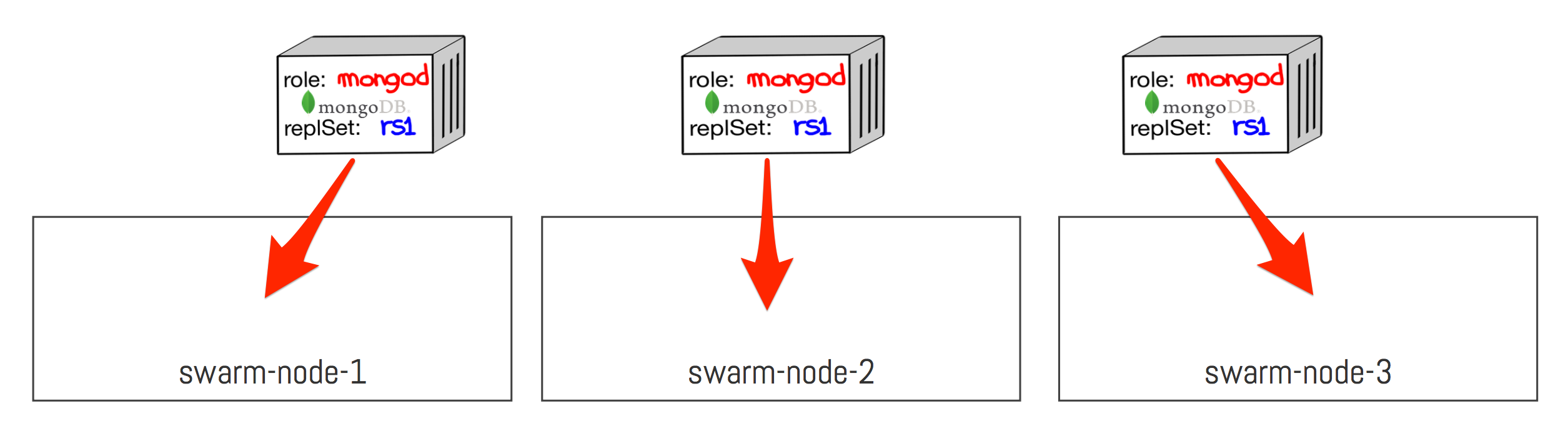

# Orchestrate containers deployment
## Labels in Swarm to define deployment rules
- Property defined for a given container (i.e. role=primary)
- Can be used when defining filters:
- Examples:
- **Contrainst filters**: mark each container with a specific label
- **Affinity filters**: create attractions between containers (i.e. alter target node based on containers already running)
---
class: top, left

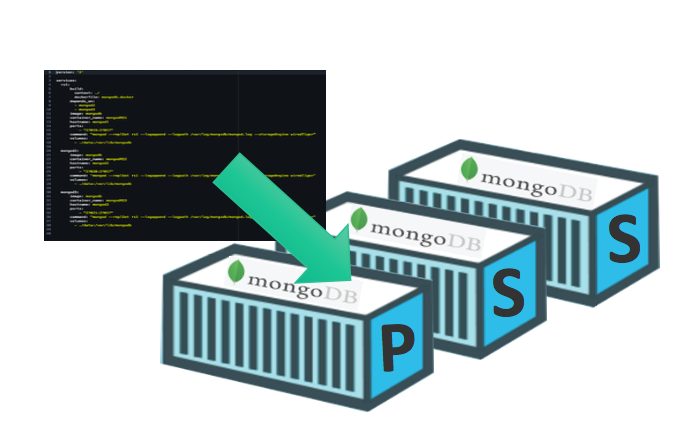

# Case Study: Deploying a MongoDB cluster using Docker containers and cgroups

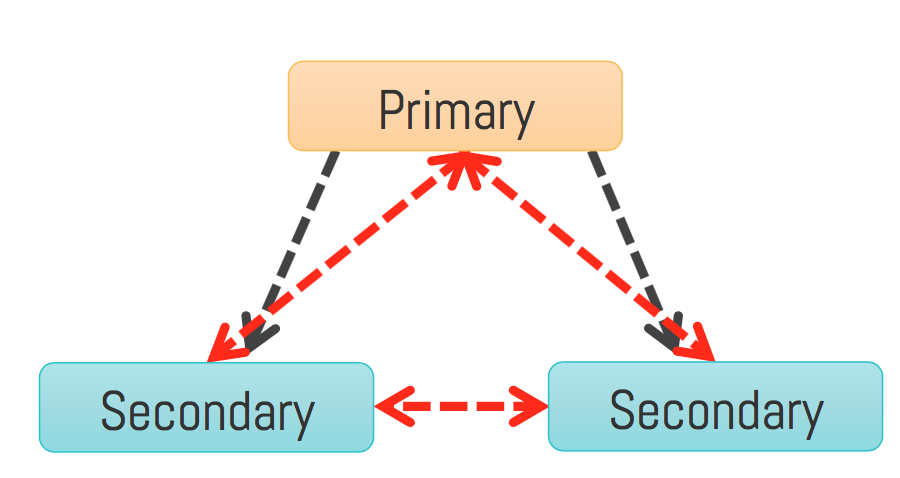

| Replica Set: Redundancy and fault tolerance |  |
|---|---|

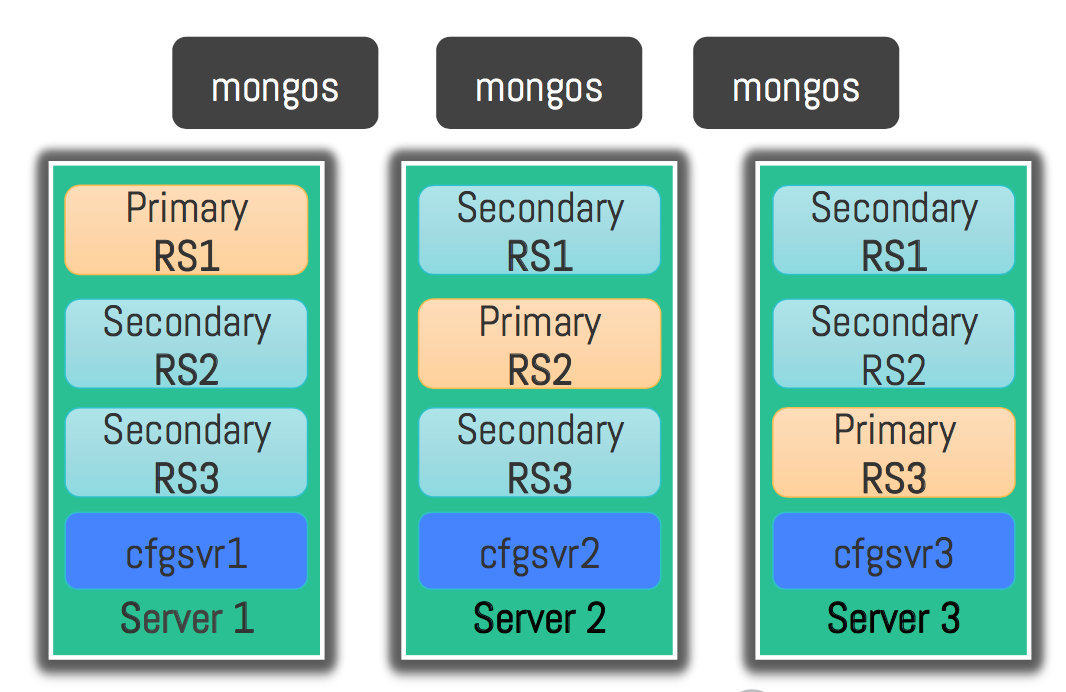

| Sharded cluster: Scalability |  |
---
class: top, left

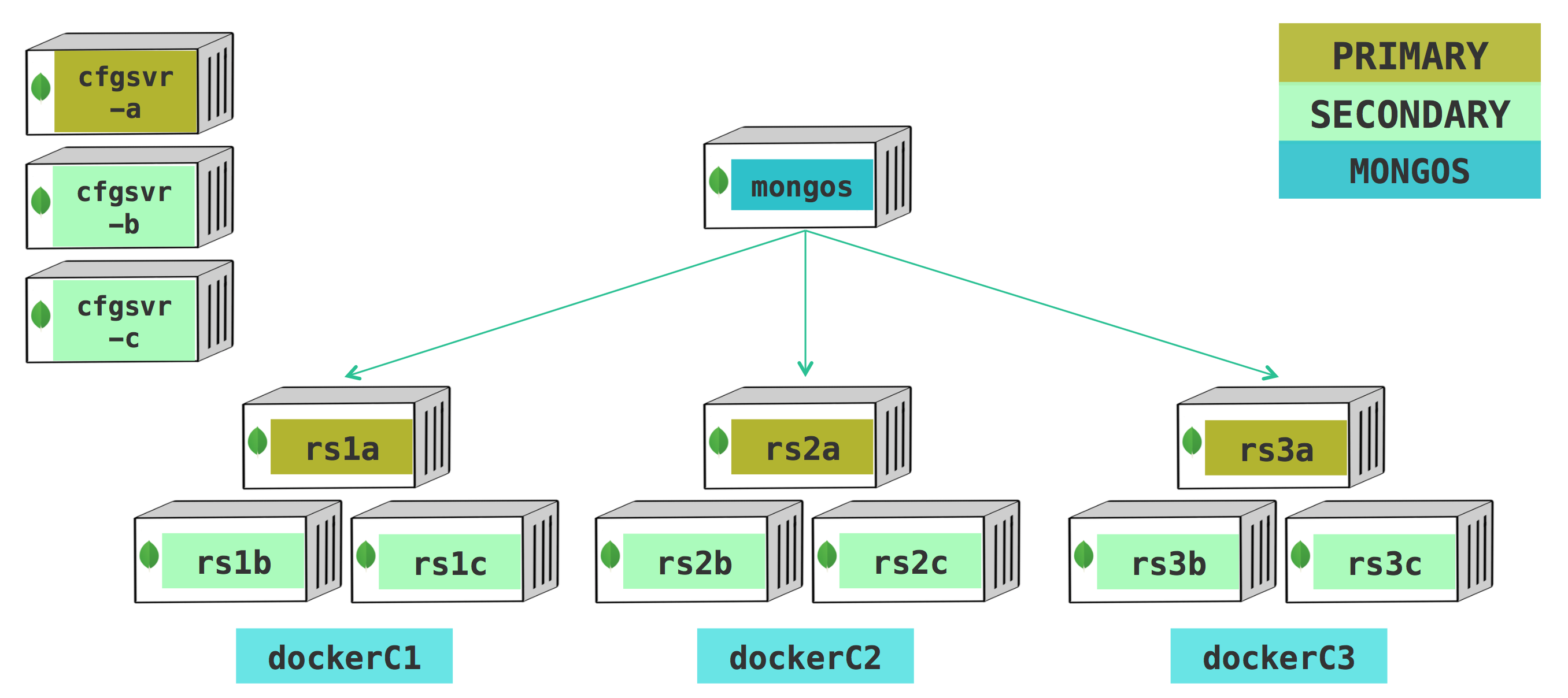

# Our dockerized MongoDB cluster
---
class: top, left
# Docker image
If we like, we can push our image to http://hub.docker.com:
```shell
docker build -f mongodb.3.4.docker -t mongodb:3.4.0-rc3 .
docker tag mongodb:3.4.0-rc3 marcob/mongodb-3.4.0-rc3
* docker push marcob/mongodb-3.4.0-rc3
```
Once our image is published, running it on other hosts is as easy as:
```shell
docker run -d --hostname mongo1 --name mongo -p 27017:27017 marcob/mongodb-3.4.0-rc3 mongod
```
Now we can use this image for all our MongoDB deployments
---
class: top, left
# Docker compose
**We can define multiple files to address different areas:**

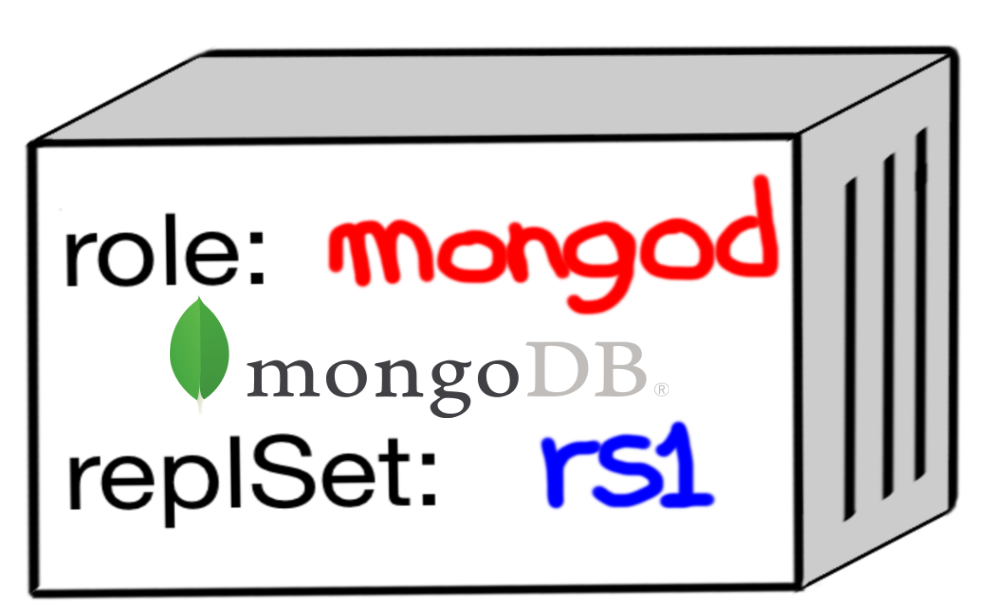

Labels common to each replica set
```yaml
mongodb_replset_1:
marcob/mongodb-3.4.0-rc3
labels:
- "role=mongod"
- "replset=rs1"
```
Options specific to each container
```yaml
rs1a:
extends:
file: mdb_base.yaml
service: mongodb_replset_1
ports:
- 27027:27027
volumes:
- /mnt/data/rs1:/data
hostname: rs1a
container_name: rs1a
labels:
- "initialstate=primary"
* command: mongod --port 27027 --dbpath /data/ --logpath /data/mongodb/mongod_27027.log --logappend --replSet replset_1 --wiredTigerCacheSizeGB 16
```
---
class: top, left
# Docker compose
Filters to orchestrate each container deployment
```yaml
rs1a:
extends:
file: mdb_cgroup.yaml
service: rs1a
environment:
- "affinity:replset!=rs1"
- "affinity:initialstate!=~primary"
- "constraint:node!=marcob-MDBW-swarm-master"
```
--
And also cgroups limits for each container:
```yaml
rs1a:
extends:
file: mdb_repl.yaml
service: rs1a
cpuset: "0"
mem_limit: "6442450944"
memswap_limit: "6442450944"
```
---
class: top, left
# Docker, cgroups and MongoDB
When running any process inside a container, memory usage is a key point to understand
---
class: top, left
# Orchestrating MongoDB containers with Docker Swarm
Each container tagged with 2 labels...
---
class: top, left
# Summary
## Docker containers can be really useful:
- **Speed**: testing and deploying patterns instead of single processes
- Build once, deploy everywhere
- **Control**: Resource control and utilization
- Key to success with containers
- **Agility**: Microservices architectures
- Making change less expensive
- **Flexibility**: Multi vendor cloud opportunities
- AWS, Azure, Google, IBM, CloudFoundry
---
class: top, left
# How successful customers use MongoDB with Docker
- **Case Studies:**
- www.mongodb.com/blog
- **"Enabling Microservices - Containers & Orchestration Explained"**
- www.mongodb.com/collateral/microservices-containers-and-orchestration-explained
---
class: center, left
# Now it's YOUR turn!
